HSFG Bolts to IS 3757, EN 14399 and ASTM F3125 (A325 / A490)
S R Forgings is an HSFG bolts manufacturer and exporter at Focal Point, Ludhiana, India. We hot forge and heat treat high strength friction grip bolt assemblies — bolt, nut and hardened washer supplied as a matched set — to IS 3757 / IS 6623 / IS 6649, EN 14399 and ASTM F3125 grades A325 and A490, in property classes 8.8S and 10.9S, from M16 to M36 as the standards tabulate. Beyond the tables we make customised HSFG bolts to drawing — we have manufactured 75 mm diameter HSFG bolts, heavy head versions and lengths up to 2500 mm.
Every assembly is supplied with a material test certificate and mechanical test report. Finishes available: black, hot-dip galvanised and zinc flake. Direct tension indicator (DTI) washers to EN 14399-9 can be supplied with the set — see our washers page. For installation values, use the bolt torque calculator, and for a comparison of the three standards read HSFG bolt standards: IS 3757, EN 14399 and ASTM F3125.
Our HSFG bolts go to structural steel fabricators, bridge and metro contractors, PEB builders and data centre projects across India and overseas. A recent example: M42 10.9S bolts with a customised 45 mm heavy head, supplied direct to Arwade Infrastructure for a data centre structure where no standard grip length existed at that size. Send us your size list or drawing and we will quote with weights and delivery time.
HSFG Bolts — IS 3757
Standard HSFG assemblies M16 to M36 to IS 3757 / IS 6623 / IS 6649, also EN 14399 and ASTM F3125 (A325 / A490). Property classes 8.8S and 10.9S, supplied as matched bolt, nut and washer sets.

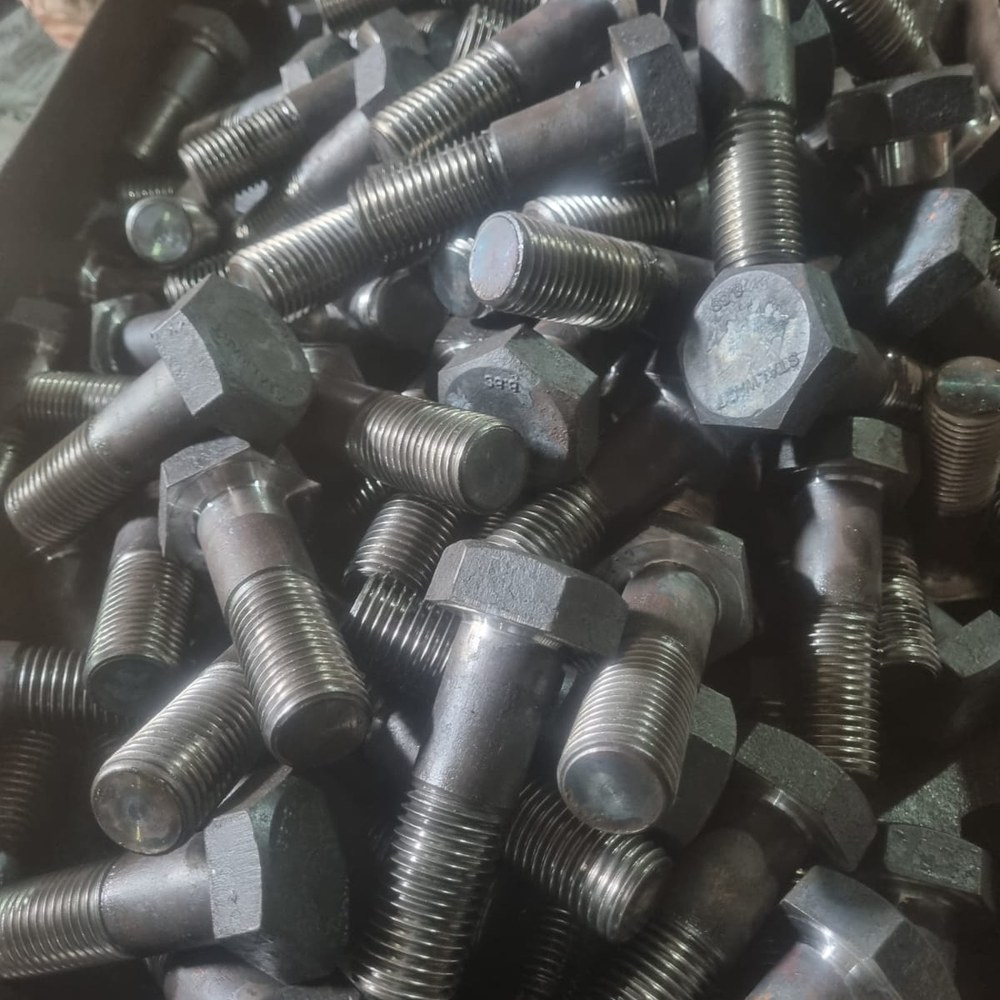

Customised HSFG Bolts
HSFG bolts outside the standard tables, made to your drawing: diameters up to 75 mm, heavy or non-standard heads, grip lengths that do not exist in IS 3757, lengths to 2500 mm. Example: M42 10.9S with a 45 mm head for a data centre structure.
Send Enquiry

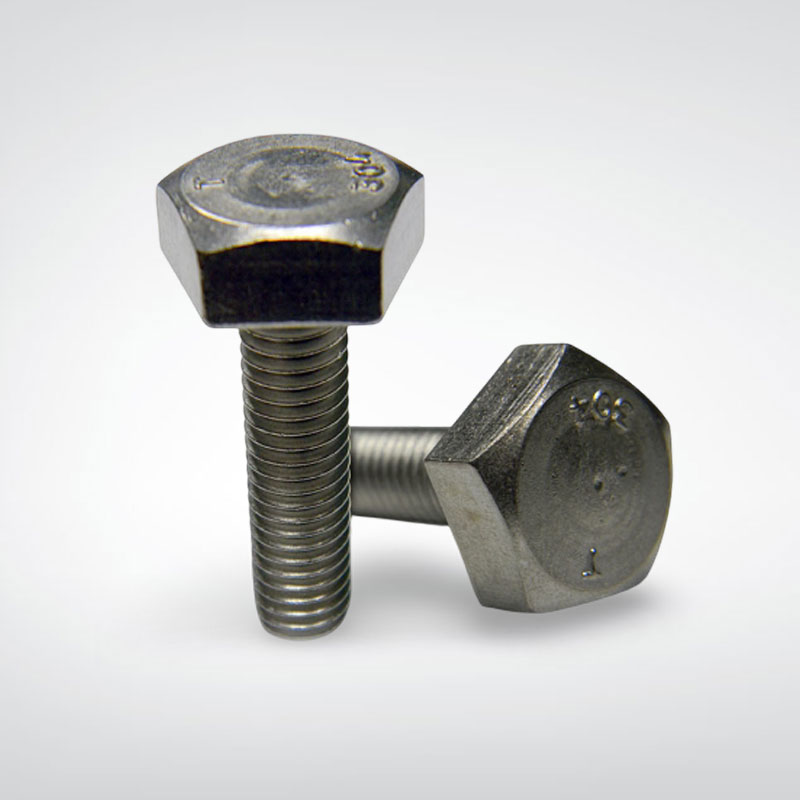

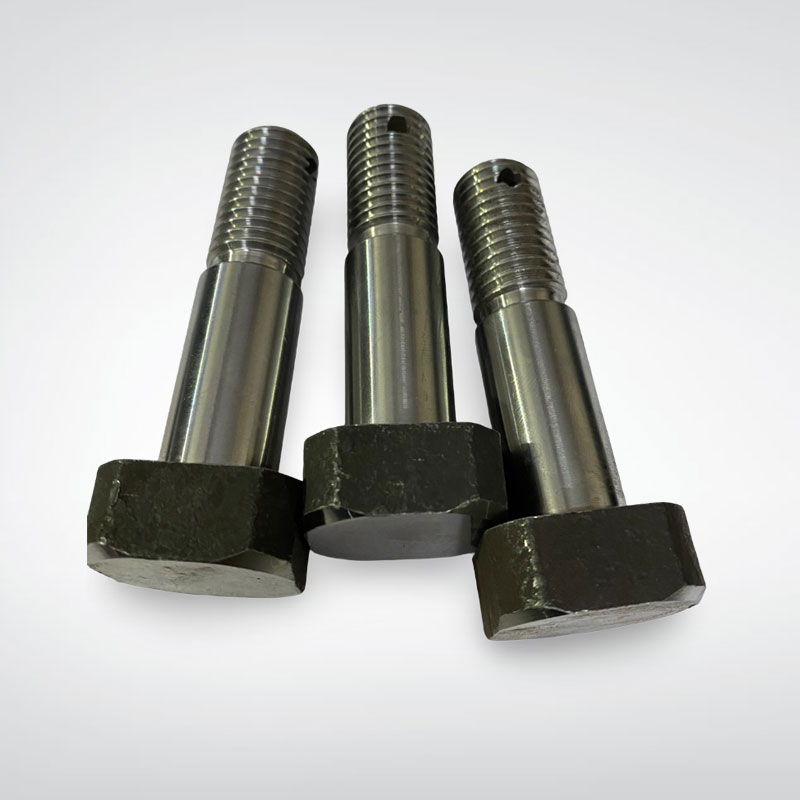

Standard Hex Bolts
Hex bolts to IS 1364, ISO 4014 / 4017 and DIN 931 / 933 in property classes 4.6, 5.6, 8.8, 10.9 and 12.9. Full or half thread; metric, UNC, UNF and BSW. Supplied in any coating you specify — black, zinc plated, hot-dip galvanised, zinc flake or others.
Send Enquiry
Square Head Bolts
Hot forged square head bolts to IS 2585 or to your drawing, in mild steel and high tensile grades. Used where the head must be held by a slot or channel rather than a spanner.
Send Enquiry

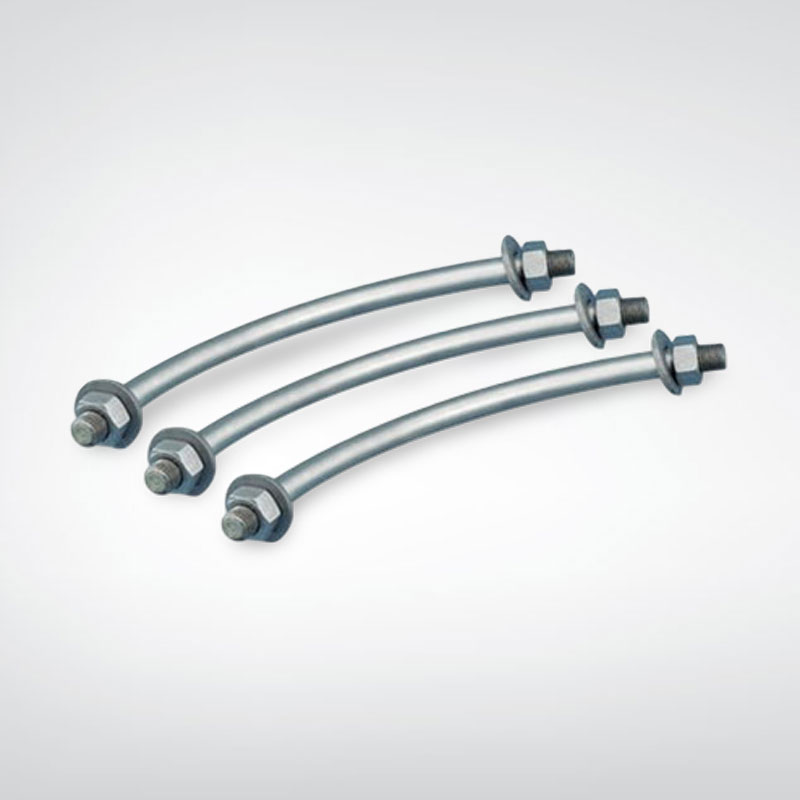

Tunnel Segment Bolts
Curved and straight segment bolts for TBM tunnel lining, made to the project drawing with matching washers and nuts. Normally property class 8.8; where the project calls for it we supply customised grades — 8.8 with 15% minimum elongation, or a 700 MPa tensile grade with higher elongation. Supplied for metro tunnel works.
Send Enquiry

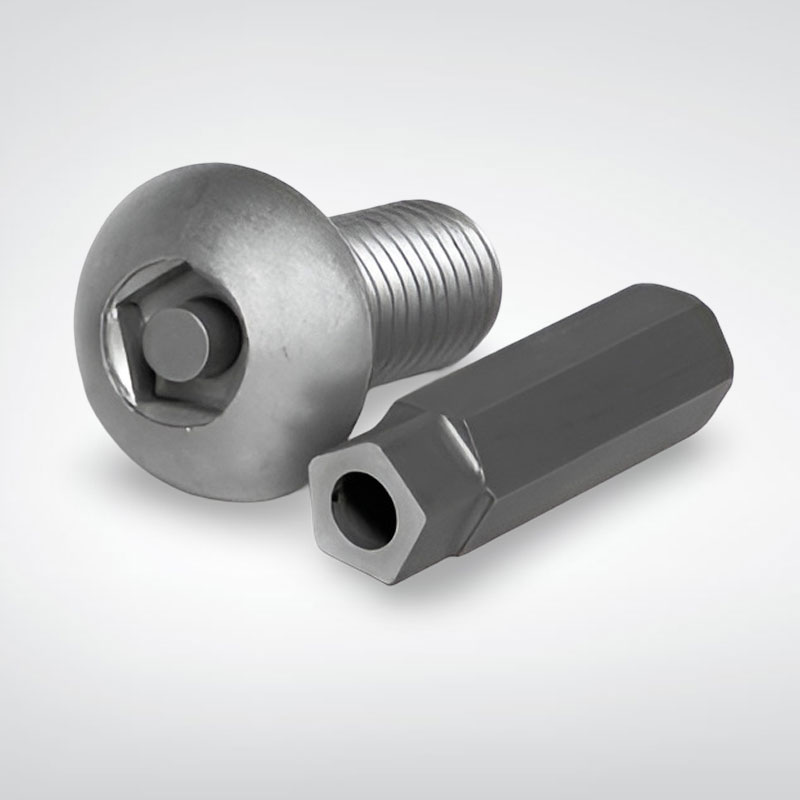

Anti-theft Bolts
Security bolts with non-standard heads that cannot be removed with ordinary spanners, for crash barriers, railway fixtures and outdoor installations. Made to drawing.
Send Enquiry

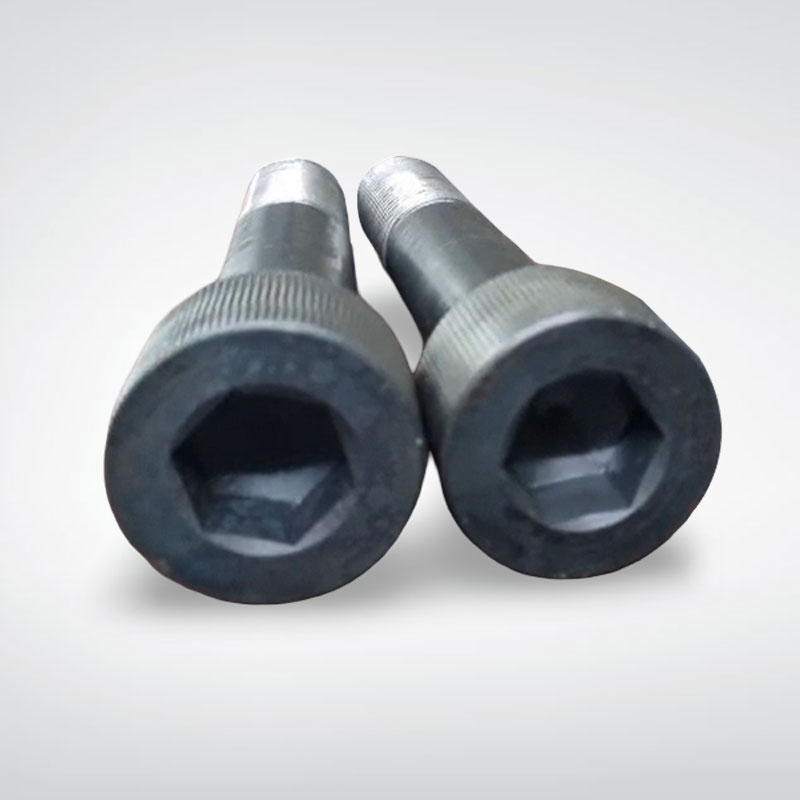

Socket Head Cap Screw
Socket head cap screws to ISO 4762 / DIN 912 in property classes 8.8, 10.9 and 12.9, up to M64. Black or zinc plated, to standard length or to drawing.
Send Enquiry

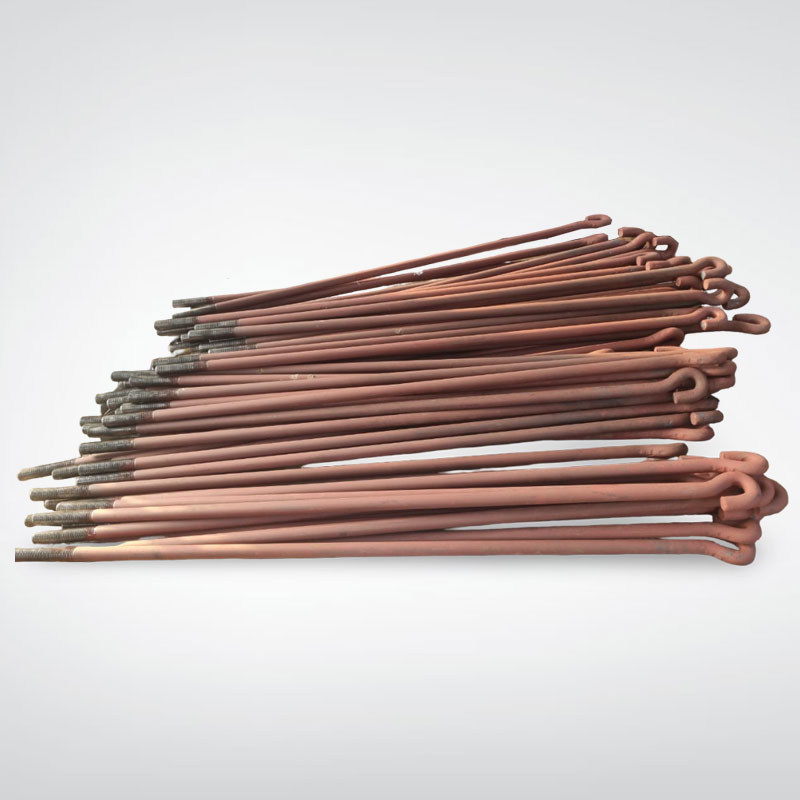

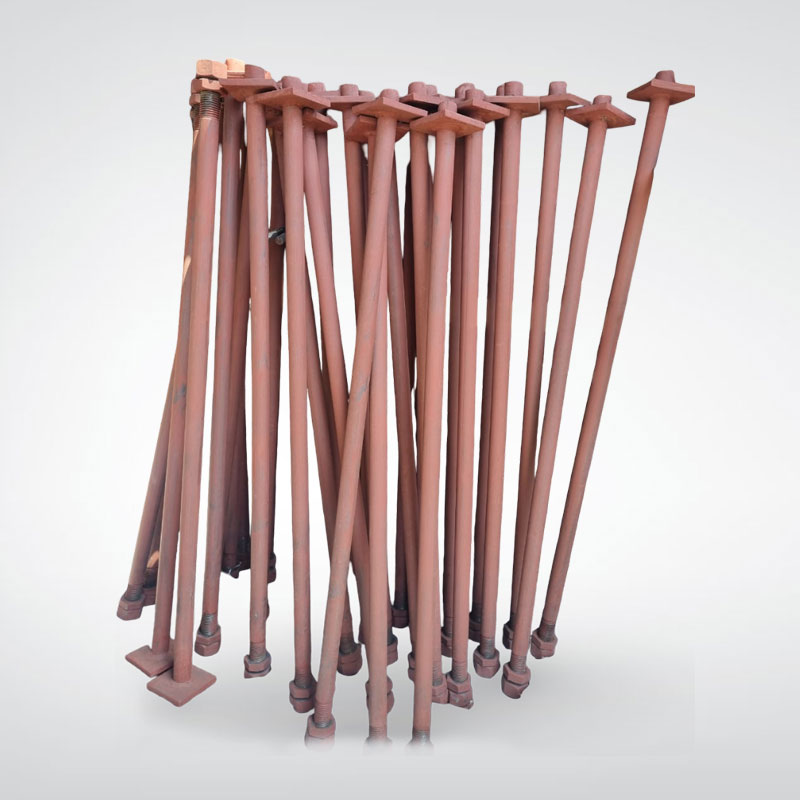

Foundation & Anchor Bolts
Welded plate assemblies, J and L bolts and made-to-drawing anchors up to 110 mm diameter and 3750 mm long, in mild steel, 8.8 and 10.9. Full details, photos and weight calculator on the foundation bolts page.
Foundation & anchor bolts

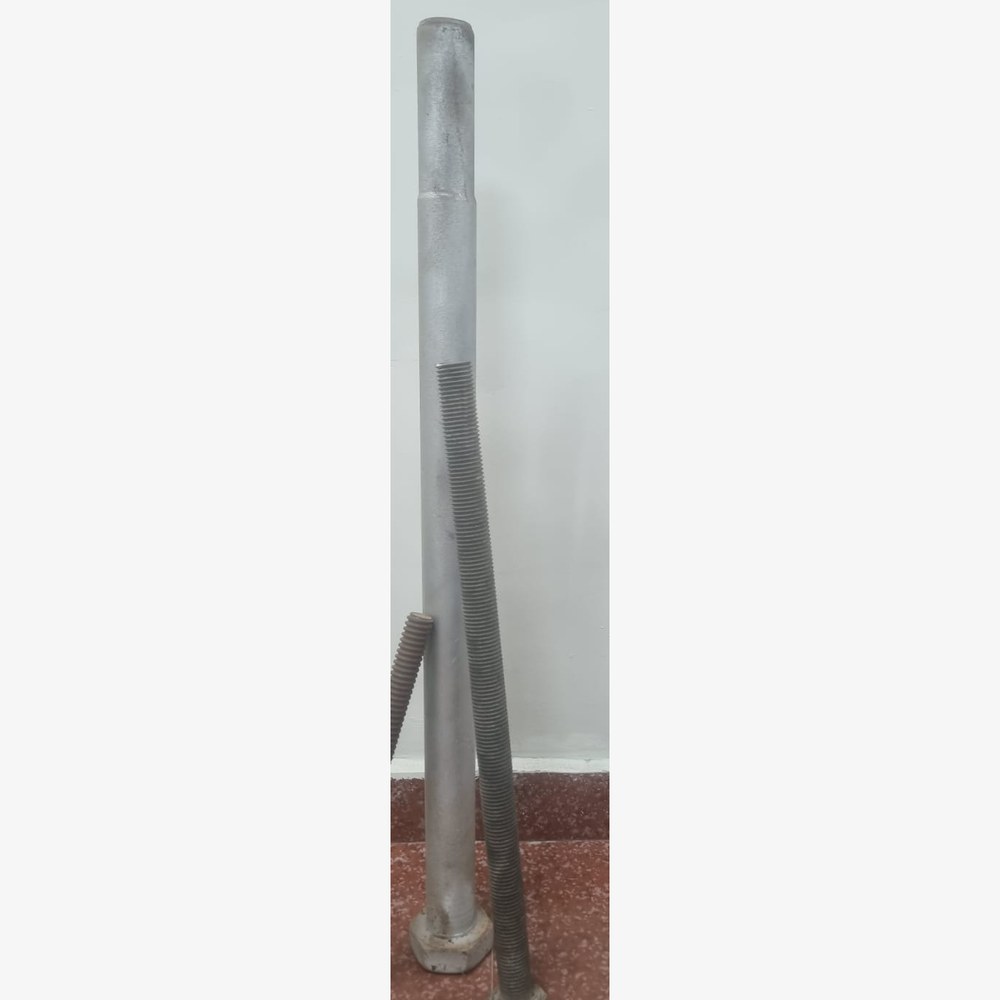

Extra Long Bolts
Hex and HSFG bolts in lengths well beyond the standard tables, forged and thread rolled in-house, in 8.8 and 10.9. Lengths up to 2500 mm. Tell us the diameter and length you need.
Send Enquiry

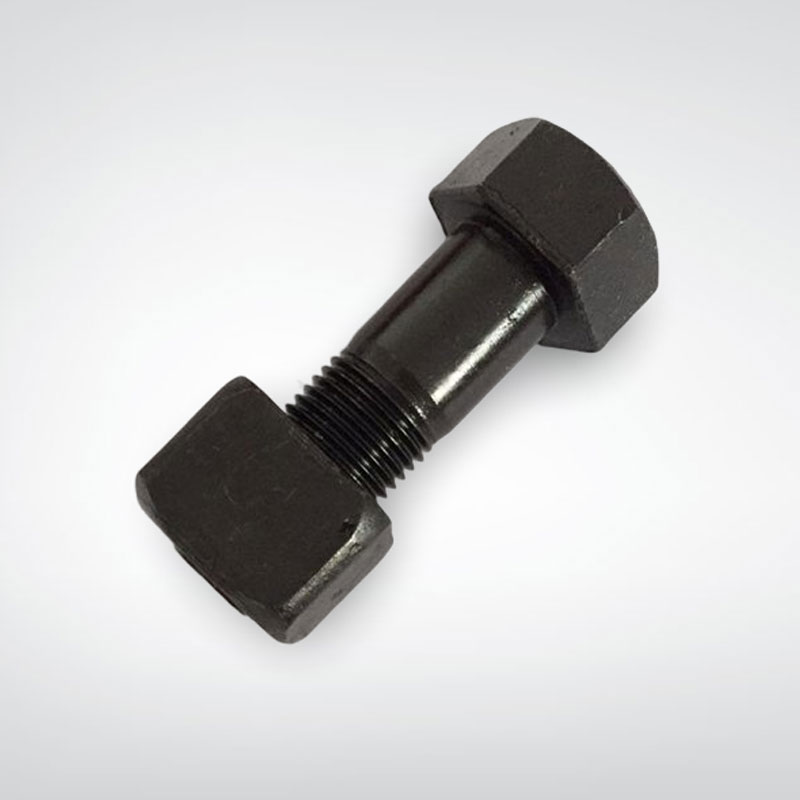

Track Shoe Bolt
Track shoe bolts and nuts for crawler undercarriages on excavators, dozers and drilling rigs, in high tensile grades to OEM dimensions or sample.
Send Enquiry

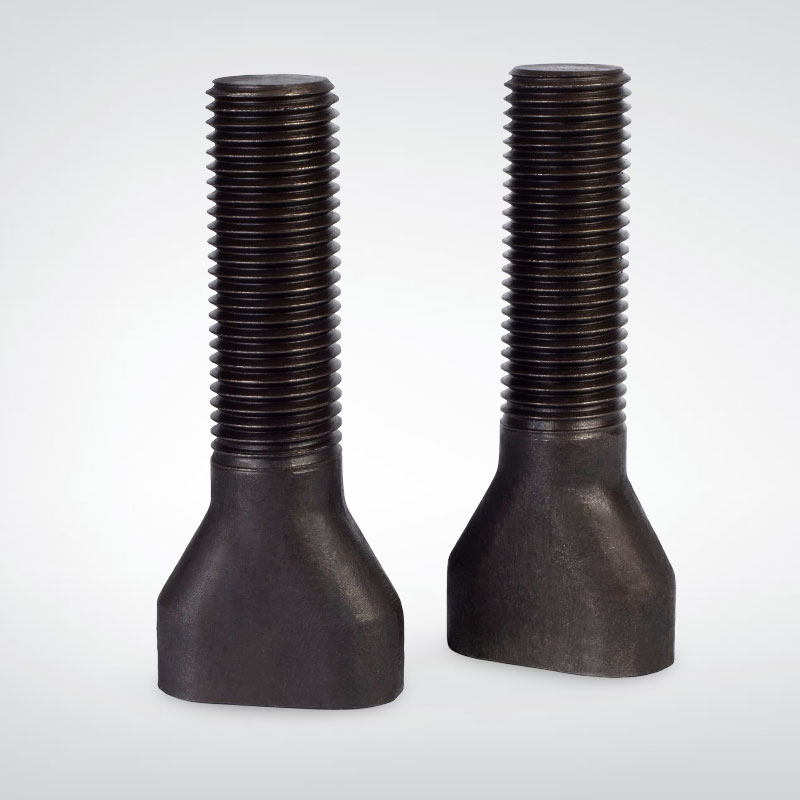

Mill Liner Bolt
Liner bolts for ball and SAG mills in mining and cement plants, forged with oval or square necks to suit the liner casting, made to drawing.
Send Enquiry
