DTI Washer Manufacturer (Direct Tension Indicator)
A direct tension indicator, or DTI washer, is a load-indicating washer with a series of raised protrusions on one face. As the bolt is tightened the protrusions compress, and when the remaining gap reaches a specified dimension — checked with a feeler gauge — the bolt has reached its required minimum tension. This gives a direct, visible confirmation of bolt tension instead of relying on applied torque.
Correct tension is critical in HSFG bolted connections. Too little and the joint can slip or work loose; too much and threads can strip or the bolt can fail. A DTI washer lets an inspector verify every bolt in a connection quickly, on site, without specialist tooling — which is why they are specified on structural steelwork, bridges, transmission towers and other load-critical assemblies.
DTI washers are manufactured from hardened and tempered carbon steel. S.R. Forgings produces direct tension indicator washers to EN 14399-9, the standard required for Indian Railways (RDSO) supply.
DTI Washers
The principle of HSFG bolted connections relies on tensioning each bolt in the connection to a specified minimum tension, so that the desired clamping force is induced.
Plain Washer
Plain washers for mechanical and heavy engineering work, distributing the clamping load over a wider area and protecting the surface beneath the nut or bolt head.
Send Enquiry

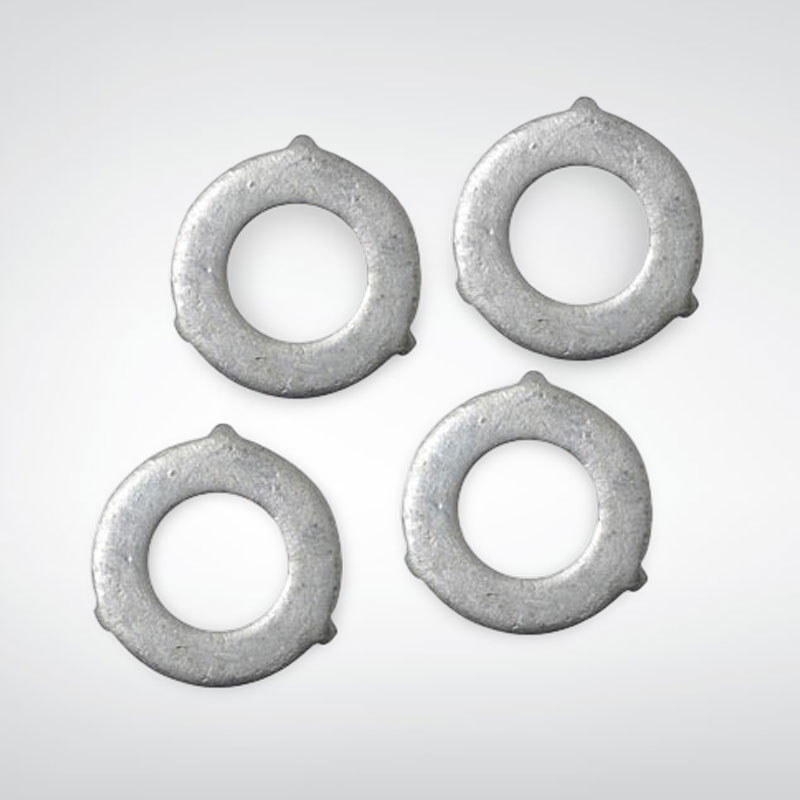

IS 6649 Washers
Hardened and tempered carbon steel washers to IS 6649, used with HSFG bolt assemblies in structural steel connections.

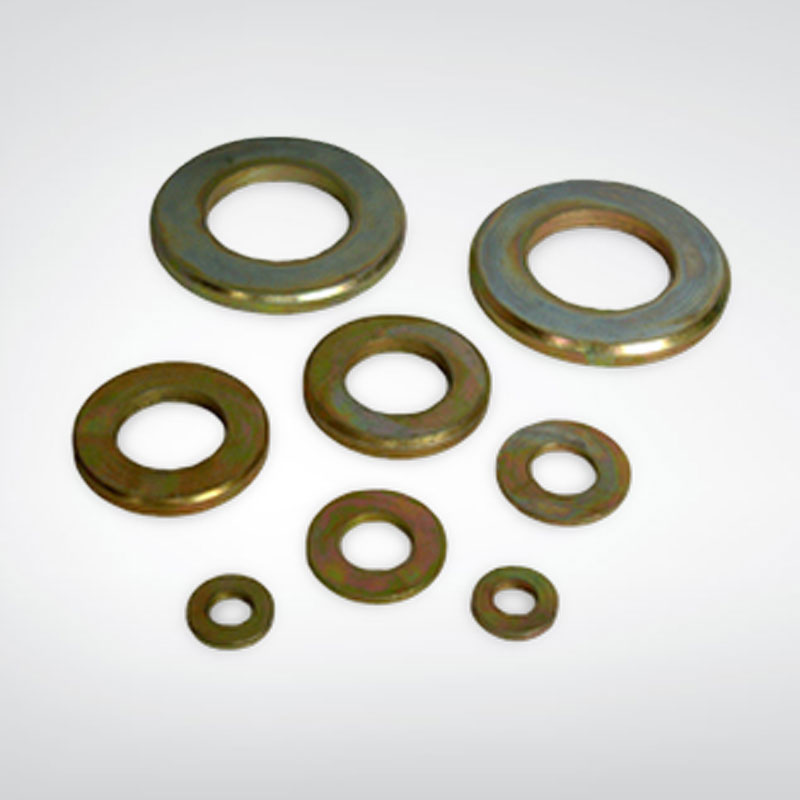

IS:2016 Plain Washer
Plain washers manufactured to IS 2016 dimensions, in standard sizes and to customer drawing.
Send Enquiry

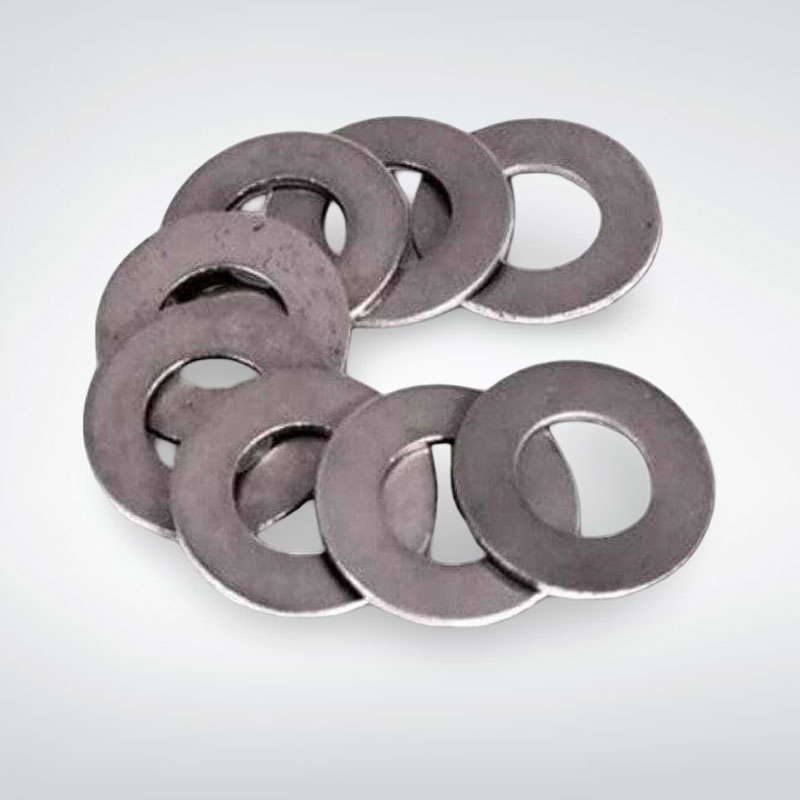

Punch Washer
Punched washers in a wide range of sizes and thicknesses. Features: clean finish, corrosion resistance and high durability.
Send Enquiry

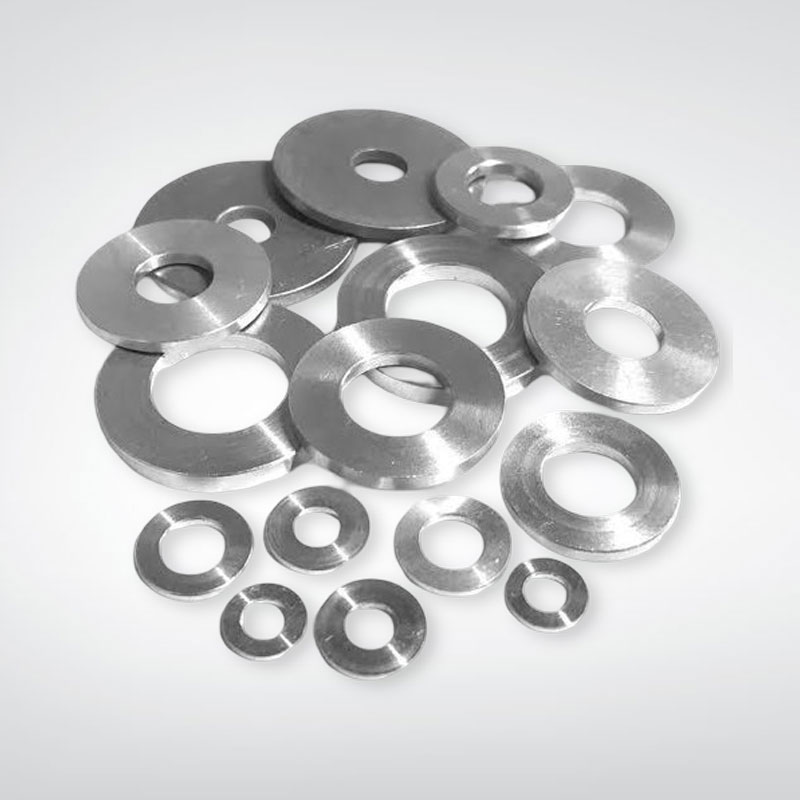

Machined Washer
Machined washers produced to national and international standards, and to customer drawing where a non-standard bore, outside diameter or thickness is required.
Send Enquiry

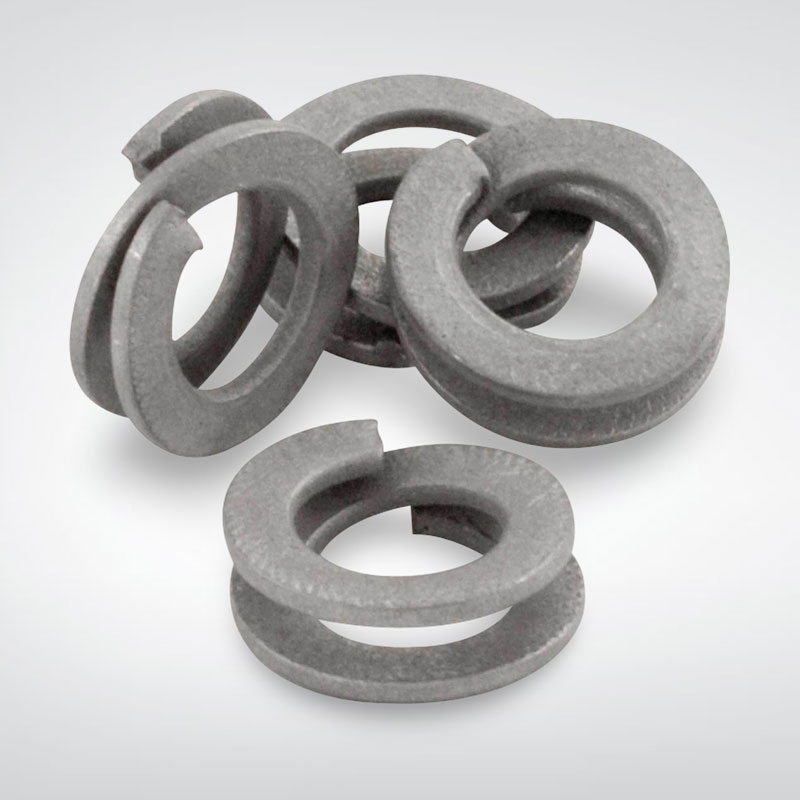

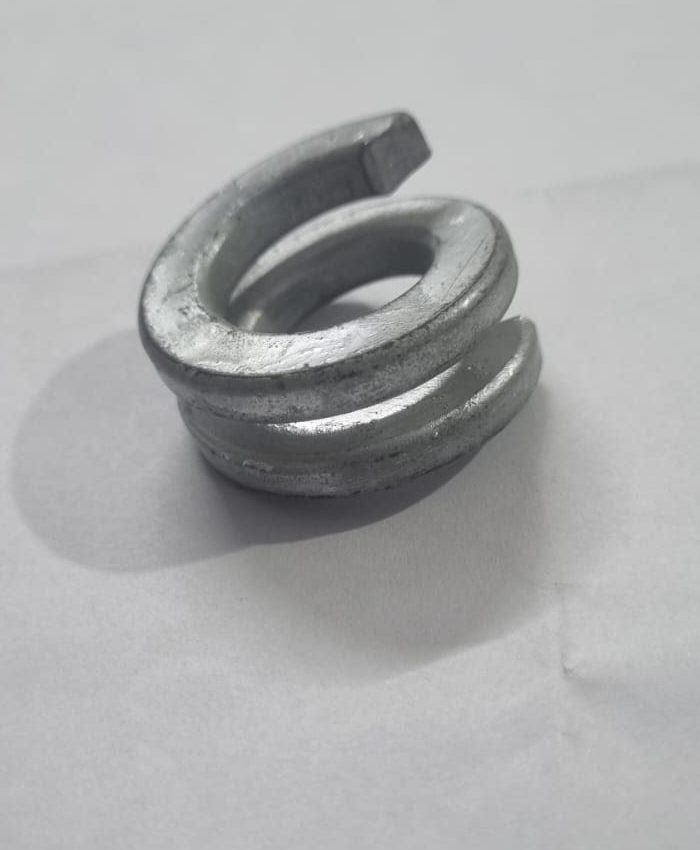

Double Coil Spring Washer
The Double Coil Spring Washers are generally used for railway applications, thanks to their unique geometry which prevents the rail loosening from the railroad ties.
Send Enquiry
